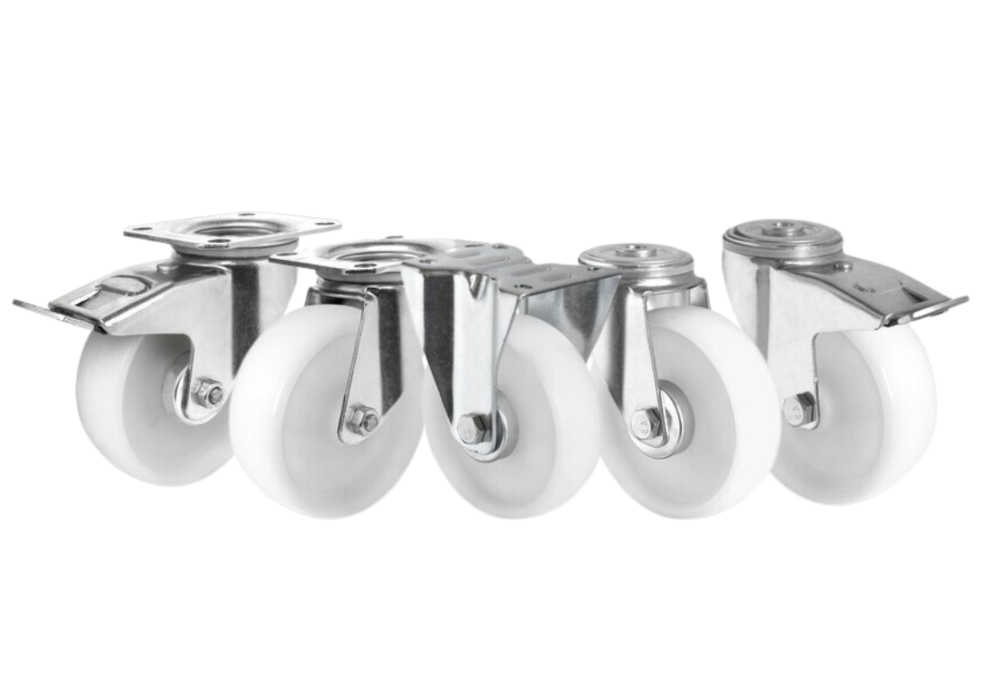

Industrial Polypropylene Castor
Industrial Polypropylene hole fitting / total brake Castor
Product Code
INDPPCAST
From
£2.41
£2.01
Please contact us on 01384 424232
to discuss discounts for large quantities of 10 or more
to discuss discounts for large quantities of 10 or more
Intended mainly for static uses, for medium-heavy capacities. The excellent rolling resistance ensures that minimum manual effort is needed in handling, but only on smooth floors. Examples of recommended applications: trolleys for internal use in the food and canning industries, tannery equipment, flower trolleys, manual pallet trucks, mobile scaffolding.
wheel-Ø (mm) |
fork type |
castor type |
mounting |
mounting size |
platethickness / forkthickness |
housing surface |
wheelcenter |
centercolor |
tread |
tread color |
temperaturerange |
bearing |
threadguard |
threadguardcolor |
Test/normal |
width of Tread (mm) |
width of hub (mm) |
wheel center hole (mm) |
screw size (mm) |
Mounting hole size (mm) |
size of plate (mm) |
plate hole centres (mm) |
plate hole (mm) |
offset(mm) |
overal height (mm) |
swivel radius (mm) |
load capacity (kg) |
Weight / pc |
80 | Swivel | Basics | plate | 80X60 mm/42 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 34 | 40 | 12 | 8 | 105x80 | 80/77x60 | 9 | 40 | 105 | 80 | |||
100 | Swivel | Basics | plate | 80X60 mm/42 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 36 | 40 | 12 | 8 | 105x80 | 80/77x60 | 9 | 40 | 125 | 100 | 521 g | ||
125 | Swivel | Basics | plate | 80X60 mm/52 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 38 | 50 | 15 | 10 | 105x80 | 80/77x60 | 9 | 40 | 155 | 150 | 799 g | ||
160 | Swivel | Premium | plate | 105X80 mm/60 | 3.50/3.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 135x110 | 105x84/76 | 11 | 55 | 195 | 250 | 1674 g | ||
200 | Swivel | Premium | plate | 105X80 mm/60 | 3.50/3.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 135x110 | 105x84/76 | 11 | 55 | 235 | 250 | 1947 g | ||
80 | Fixed | Basics | plate | 80X60 mm/42 | 2.00/2.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 34 | 40 | 12 | 8 | 105x80 | 80/77x60 | 9 | 105 | 80 | ||||
100 | Fixed | Basics | plate | 80X60 mm/42 | 2.00/2.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 36 | 40 | 12 | 8 | 105x80 | 80/77x60 | 9 | 125 | 100 | 396 g | |||
125 | Fixed | Basics | plate | 80X60 mm/52 | 2.00/2.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 38 | 50 | 15 | 10 | 105x80 | 80/77x60 | 9 | 155 | 150 | 642 g | |||
160 | Fixed | Premium | plate | 105X80 mm/60 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 135x110 | 105x84/76 | 11 | 195 | 250 | 1091 g | |||
200 | Fixed | Premium | plate | 105X80 mm/60 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 135x110 | 105x84/76 | 11 | 235 | 250 | 1341 g | |||
80 | Swivel with Total Brake | Basics | plate | 80X60 mm/42 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 34 | 40 | 12 | 8 | 105x80 | 80/77x60 | 9 | 40 | 105 | 127 | 80 | ||
100 | Swivel with Total Brake | Basics | plate | 80X60 mm/42 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 36 | 40 | 12 | 8 | 105x80 | 80/77x60 | 9 | 40 | 125 | 127 | 100 | 749 g | |
125 | Swivel with Total Brake | Basics | plate | 80X60 mm/52 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 38 | 50 | 15 | 10 | 105x80 | 80/77x60 | 9 | 45 | 155 | 127 | 150 | 989 g | |
160 | Swivel with Total Brake | Premium | plate | 105X80 mm/60 | 3.50/3.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 135x110 | 105x84/76 | 11 | 55 | 195 | 165 | 250 | 2070 g | |
200 | Swivel with Total Brake | Premium | plate | 105X80 mm/60 | 3.50/3.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 135x110 | 105x84/76 | 11 | 55 | 235 | 165 | 250 | 2229 g | |
80 | hole fitting | Basics | hole fitting | 13 mm/42 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 34 | 40 | 12 | 8 | 13 | 40 | 104 | 80 | |||||
100 | hole fitting | Basics | hole fitting | 13 mm/42 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 36 | 40 | 12 | 8 | 13 | 40 | 124 | 100 | 472 g | ||||
125 | hole fitting | Basics | hole fitting | 13 mm/52 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 38 | 50 | 15 | 10 | 13 | 40 | 154 | 150 | 718 g | ||||
160 | hole fitting | Premium | hole fitting | 13 mm/60 | 3.50/3.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 13 | 55 | 189 | 250 | 90 g | ||||
200 | hole fitting | Premium | hole fitting | 13 mm/60 | 3.50/3.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 13 | 55 | 228 | 250 | 90 g | ||||
80 | hole fitting/ total brake | Basics | hole fitting | 13 mm/42 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 34 | 40 | 12 | 8 | 13 | 40 | 104 | 127 | 80 | ||||
100 | hole fitting/ total brake | Basics | hole fitting | 13 mm/42 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | plain bearing | without | without | EN standard | 36 | 40 | 12 | 8 | 13 | 40 | 124 | 127 | 100 | 685 g | |||
125 | hole fitting/ total brake | Basics | hole fitting | 13 mm/52 | 2.50/2.50 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 38 | 50 | 15 | 10 | 13 | 45 | 154 | 127 | 150 | 928 g | |||
160 | hole fitting/ total brake | Premium | hole fitting | 13 mm/60 | 3.50/3.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 13 | 55 | 189 | 165 | 250 | 90 g | |||
200 | hole fitting/ total brake | Premium | hole fitting | 13 mm/60 | 3.50/3.00 | zinc blue | Polypropylene | white | Polypropylene | white | - 20 to + 60°C | roller bearing | small metal | zinc blue | EN standard | 50 | 59 | 20 | 12 | 13 | 55 | 228 | 165 | 250 | 90 g |
