80-150mm Apparatus Castor

Product Code
80-150mm Apparatus Castor
From £3.07

Prices Displayed Exclude VAT

Call Please contact us on 01384 424232
to discuss discounts for large quantities.

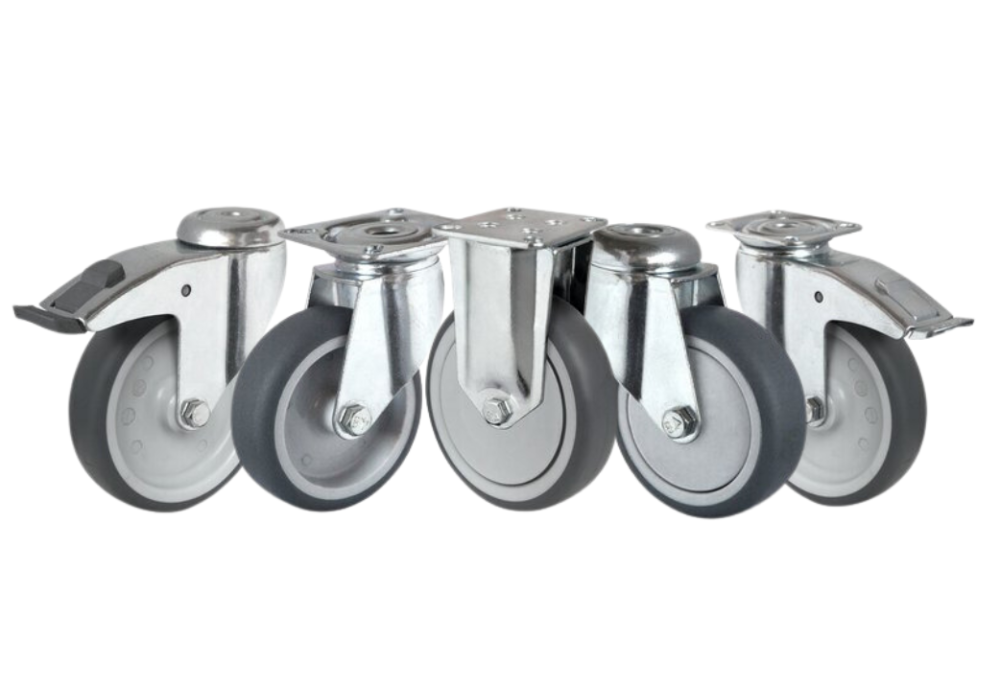

main product photo
The plain bearing bore results from a hole in the material forming the centre of the wheel and contains the axle. Suitable for use on different types of trolleys within the furniture and institutional sector. They can also be used on fragile floors and in presence of small obstacles. Example of recommended applications: shop display units and windows, low carrying capacity tool trolleys, supermarket trolleys
wheel-Ø fork type castor type mounting mounting size plate
thickness / fork
thickness		 housing surface wheel
center		 center
color		 tread shore A tread color temperature
range		 bearing thread-guard thread-guard
color		 test / standard width of tread width of hub wheel center hole axle screw bolt hole size  size of plate plate hole centres plate hole  offset  overal height swivel radius dyn. load capacity (kg)  g
80 swivel apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 37 111   80
100 swivel apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 37 135   100 502 g
125 swivel apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 40 160   100 614 g
125 swivel apparatus castor plate 95X70mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   95x70 75X50 11 40 160   100 720 g
150 swivel apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 40 185   100 712 g

80 fixed apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5   111   80
100 fixed apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5   135   100 496 g
125 fixed apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5   160   100 615 g
125 fixed apparatus castor plate 95X70mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   95x70 75X50 11   160   100 721 g
150 fixed apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5   185   100 700 g

80 swivel with total brake apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 37 111 132 80
100 swivel with total brake apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 37 135 132 100 698 g
125 swivel with total brake apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 40 160 132 100 786 g
125 swivel with total brake apparatus castor plate 95X70mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   95x70 75X50 11 40 160 132 100 892 g
150 swivel with total brake apparatus castor plate 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 40 185 132 100 578 g

100 swivel with total braked / plastic pedal apparatus castor hole fitting 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 6   77x67 61.5/56x51.5/46.5 8.5 37 135 132 100 668 g
125 swivel with total braked / plastic pedal apparatus castor hole fitting 77X67mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 40 160 132 100 756 g
125 swivel with total braked / plastic pedal apparatus castor hole fitting 95X70mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   95x70 75X50 11 40 160 132 100 784 g
150 swivel with total braked / plastic pedal apparatus castor hole fitting 77X67mm 2.5/02.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8   77x67 61.5/56x51.5/46.5 8.5 40 185 132 100 870 g

80 hole fitting apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       37 111   80
100 hole fitting apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       37 135   100 489 g
125 hole fitting apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       40 160   100 599 g
150 hole fitting apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       40 185   100 700 g

80 hole fitting / total brake apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       37 111 132 80
100 hole fitting / total brake apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       37 135 132 100 666 g
125 hole fitting / total brake apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       40 160 132 100 770 g
150 hole fitting / total brake apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       40 185 132 100 882 g

100 brake with plastic pedal / hole fitting apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       37 135 132 100 636 g
125 brake with plastic pedal / hole fitting apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       40 160 132 100 740 g
150 brake with plastic pedal / hole fitting apparatus castor hole fitting 11mm 2.50/2.50 zinc chromatised Polypropylene grey TPR  95 grey - 20 to + 60°C plain bearing without without EN standard 32 36 12 8 11       40 185 132 100 852 g
