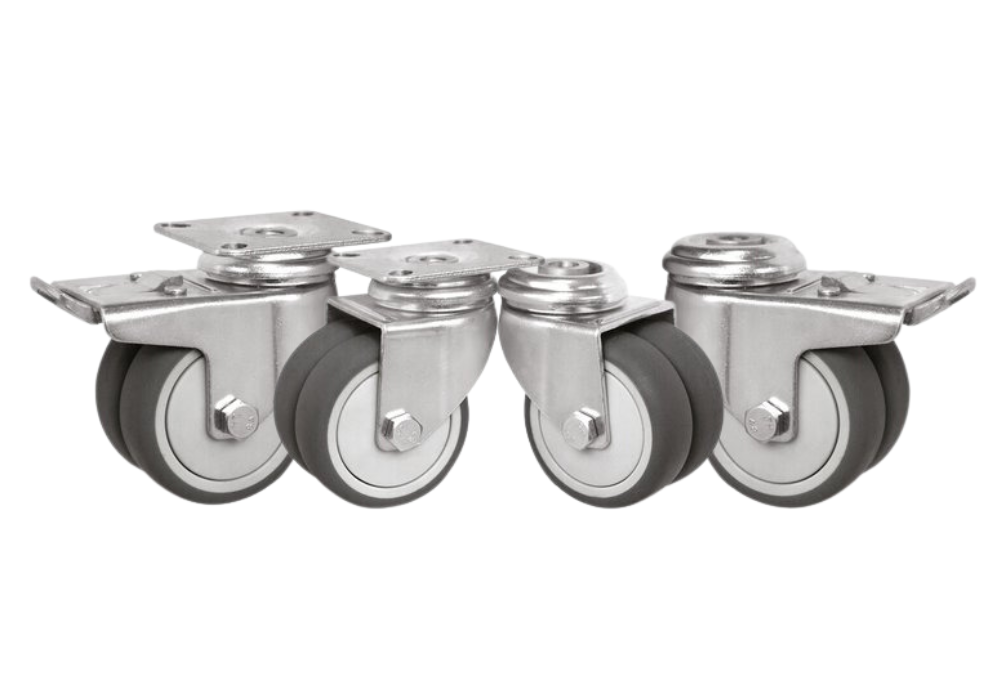

Twin Apparatus Ball Bearing Castor
Product Code
Twin-Apparatus-Ball-Bearing-Castor
From
£3.34
£2.78
Please contact us on
Suitable for use on different types of trolleys within the furniture and institutional sector. They can also be used on fragile floors and in presence of small obstacles. Examples of recommended applications; shop display units and windows, low carrying capacity tool trolleys and supermarket trolleys.
| wheel-Ø | fork type | castor type | mounting | mounting size | plate thickness / fork thickness |
housing surface | wheel center |
center color |
tread | shore A | tread color | temperature range |
bearing | thread-guard | thread-guard color |
test / standard | width of tread | width of hub | wheel center hole | axle screw | bolt hole size | size of plate | plate hole centres | plate hole | offset | overal height | swivel radius | dyn. load capacity (kg) |
| 50 | swivel | double swivel | plate | 60X60 mm / 44 hub | 2.50/2.00 | zinc chromatised | Polypropylene | grey | TPR | 95 | grey | - 20 to + 60°C | ball bearing | big plastic | grey | EN standard | 19 | 44 | 8 | 6 | 60x60 | 48/38x48/38 | 6.3 | 25 | 70 | 70 | ||
| 50 | swivel with total brake | double swivel | plate | 60X60 mm / 44 hub | 2.50/2.00 | zinc chromatised | Polypropylene | grey | TPR | 95 | grey | - 20 to + 60°C | ball bearing | big plastic | grey | EN standard | 19 | 44 | 8 | 6 | 60x60 | 48/38x48/38 | 6.3 | 25 | 70 | 80 | 70 | |
| 50 | hole fitting | double swivel | hole fitting | 11 mm / 44 hub | 1.50/2.00 | zinc chromatised | Polypropylene | grey | TPR | 95 | grey | - 20 to + 60°C | ball bearing | big plastic | grey | EN standard | 19 | 44 | 8 | 6 | 11 | 25 | 70 | 70 | ||||
| 50 | hole fitting / total brake | double swivel | hole fitting | 11 mm / 44 hub | 1.50/2.00 | zinc chromatised | Polypropylene | grey | TPR | 95 | grey | - 20 to + 60°C | ball bearing | big plastic | grey | EN standard | 19 | 44 | 8 | 6 | 11 | 25 | 70 | 80 | 70 | |||
| 75 | swivel | double swivel | plate | 77X67 mm / 56 hub | 3.00/2.50 | zinc chromatised | Polypropylene | grey | TPR | 95 | grey | - 20 to + 60°C | ball bearing | big plastic | grey | EN standard | 25 | 56 | 10 | 8 | 77x67 | 61.5/56x51.5/46.5 | 8.5 | 32 | 100 | 100 | ||
| 75 | swivel with total brake | double swivel | plate | 77X67 mm / 56 hub | 3.00/2.50 | zinc chromatised | Polypropylene | grey | TPR | 95 | grey | - 20 to + 60°C | ball bearing | big plastic | grey | EN standard | 25 | 56 | 10 | 8 | 77x67 | 61.5/56x51.5/46.5 | 8.5 | 32 | 100 | 96 | 100 | |
| 75 | hole fitting | double swivel | hole fitting | 11 mm / 56 hub | 2.00/2.50 | zinc chromatised | Polypropylene | grey | TPR | 95 | grey | - 20 to + 60°C | ball bearing | big plastic | grey | EN standard | 25 | 56 | 10 | 8 | 11 | 32 | 100 | 100 | ||||
| 75 | hole fitting / total brake | double swivel | hole fitting | 11 mm / 56 hub | 2.00/2.50 | zinc chromatised | Polypropylene | grey | TPR | 95 | grey | - 20 to + 60°C | ball bearing | big plastic | grey | EN standard | 25 | 56 | 10 | 8 | 11 | 32 | 100 | 96 | 100 |
