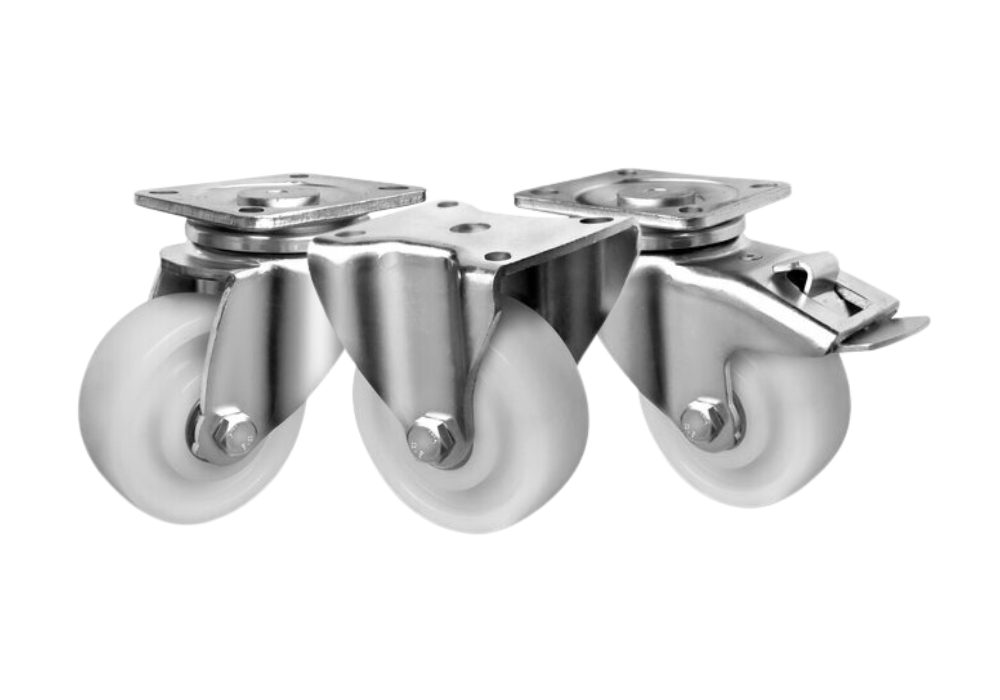

Medium Duty Nylon Castor
Product Code
Medium-Duty-Nylon-Castor
From
£8.64
£7.20
Please contact us on 01384 424232
to discuss discounts for large quantities of 10 or more
to discuss discounts for large quantities of 10 or more
Intended mainly for static uses, for medium-heavy capacities. The excellent rolling resistance ensures that minimum manual effort is needed in handling, but only on smooth floors. Examples of recommended applications: trolleys for internal use in the food and canning industries, tannery equipment, flower trolleys, manual pallet trucks, mobile scaffolding.
wheel-Ø | fork type | castor type | mounting | mounting size | plate thickness / fork thickness |
housing surface | wheel center |
center color |
tread | tread color | temperature range |
bearing | threadguard | threadguard color |
Test/normal | width of Tread (mm) | width of hub (mm) | wheel center hole (mm) | screw size (mm) | size of plate (mm) | plate hole centres (mm) | plate hole (mm) | offset (mm) |
overal height (mm) | swivel radius (mm) | load capacity (kg) |
75 | swivel | heavy duty | plate | 80/75x60/55 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 32 | 47 | 15 | M 10 | 100x85 | 80/75x60/55 | 9.2 | 45 | 117.5 | 300 | |
80 | swivel | heavy duty | plate | 80/75x60/55 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 37 | 47 | 15 | M 10 | 100x85 | 80/75x60/55 | 9.2 | 45 | 120 | 300 | |
100 | swivel | heavy duty | plate | 80/75x60/55 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 37 | 47 | 15 | M 10 | 100x85 | 80/75x60/55 mm/48 | 9.2 | 45 | 140 | 500 | |
100 | swivel | heavy duty | plate | 105x80/75 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 37 | 47 | 15 | M 10 | 135x108 | 105x80/75 mm/48 | 11 | 45 | 140 | 500 | |
125 | swivel | heavy duty | plate | 80/75x60/55 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 40 | 47 | 15 | M 10 | 100x85 | 80/75x60/55 mm/48 | 9.2 | 45 | 165 | 700 | |
125 | swivel | heavy duty | plate | 105x80/75 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 40 | 47 | 15 | M 10 | 135x108 | 105x80/75 mm/48 | 11 | 45 | 165 | 700 | |
75 | fixed | heavy duty | plate | 80/75x60/55 mm/48 | 4.00/4.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 32 | 47 | 15 | M 10 | 100x88 | 80/75x60/55 mm/48 | 9.2 | 117.5 | 300 | ||
80 | fixed | heavy duty | plate | 80/75x60/55 mm/48 | 4.00/4.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 37 | 47 | 15 | M 10 | 100x88 | 80/75x60/55 mm/48 | 9.2 | 120 | 300 | ||
100 | fixed | heavy duty | plate | 80/75x60/55 mm/48 | 4.00/4.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 37 | 47 | 15 | M 10 | 100x88 | 80/75x60/55 mm/48 | 9.2 | 140 | 500 | ||
125 | fixed | heavy duty | plate | 80/75x60/55 mm/48 | 4.00/4.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 40 | 47 | 15 | M 10 | 100x88 | 80/75x60/55 mm/48 | 9.2 | 165 | 700 | ||
75 | swivel with total brake | heavy duty | plate | 80/75x60/55 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 32 | 47 | 15 | M 10 | 100x85 | 80/75x60/55 mm/48 | 9.2 | 45 | 117.5 | 85 | 300 |
80 | swivel with total brake | heavy duty | plate | 80/75x60/55 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 37 | 47 | 15 | M 10 | 100x85 | 80/75x60/55 mm/48 | 9.2 | 45 | 120 | 85 | 300 |
100 | swivel with total brake | heavy duty | plate | 80/75x60/55 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 37 | 47 | 15 | M 10 | 100x85 | 80/75x60/55 mm/48 | 9.2 | 45 | 140 | 95 | 500 |
100 | swivel with total brake | heavy duty | plate | 105x80/75 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 37 | 47 | 15 | M 10 | 135x108 | 105x80/75 mm/48 | 11 | 45 | 140 | 95 | 500 |
125 | swivel with total brake | heavy duty | plate | 80/75x60/55 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 40 | 47 | 15 | M 10 | 100x85 | 80/75x60/55 mm/48 | 9.2 | 45 | 165 | 107.5 | 700 |
125 | swivel with total brake | heavy duty | plate | 105x80/75 mm/48 | 6.00/5.00 | zinc blue | heavy PA | white | heavy PA | white | - 40 to + 80°C | double ball bearing | without | without | EN standard | 40 | 47 | 15 | M 10 | 135x108 | 105x80/75 mm/48 | 11 | 45 | 165 | 107.5 | 700 |
