Heavy Duty Nylon Castor

Product Code
Heavy Duty Nylon Castor
From £12.50

Prices Displayed Exclude VAT

Call Please contact us on 01384 424232
to discuss discounts for large quantities.

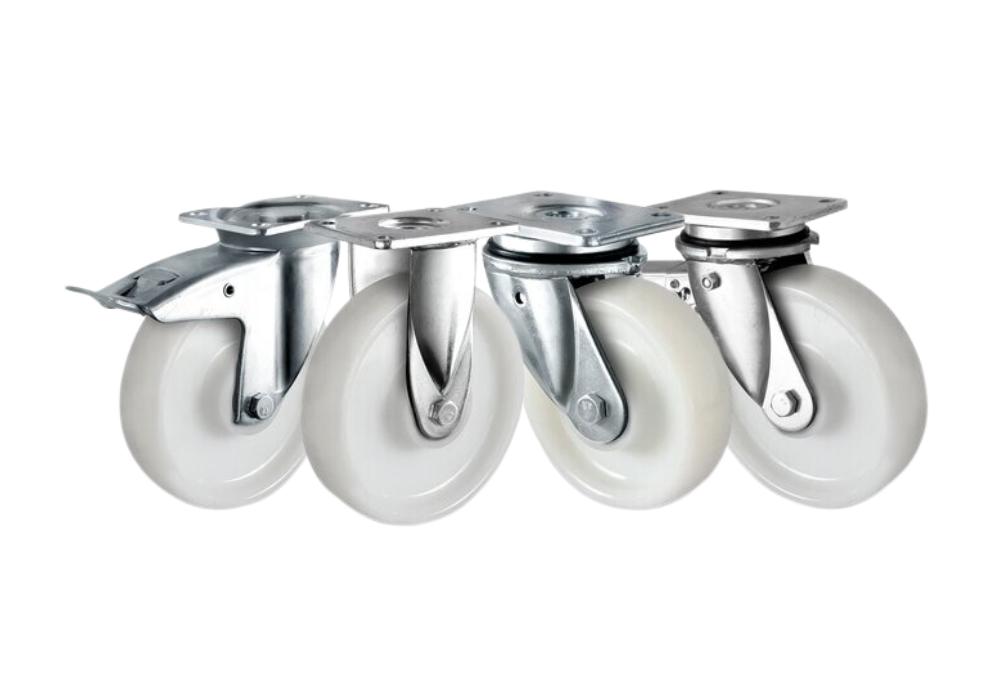

main product photo
Natural colour injection moulded virgin nylon 6 hard tread wheel. Heavy duty loads. Zinc plated electro welded castor housings. Manual handling applications. Intended mainly for static uses, for high carrying capacities. The excellent rolling resistance ensures that a minimum manual effort is needed when handling, but only on smooth floors.
wheel-Ø fork type castor type mounting mounting size plate
thickness / fork
thickness		 housing surface wheel
center		 center
color		 tread tread color temperature
range		 bearing threadguard threadguard
color		 Test/normal width of Tread (mm) width of hub (mm) wheel center hole (mm) screw size (mm) size of plate (mm) plate hole centres (mm) plate hole (mm) offset
(mm)		  overal height (mm) swivel radius (mm) load capacity (kg)
125 swivel heavy duty plate 105X80 mm/60 5.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 50 164   400
125 swivel WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 50 170   700
150 swivel heavy duty plate 105X80 mm/60 5.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 55 190   600
150 swivel WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 57 197   800
160 swivel heavy duty plate 105X80 mm/60 5.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 55 195   600
160 swivel WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 57 202   800
200 swivel heavy duty plate 105X80 mm/60 5.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 55 245   700
200 swivel WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 59 245   1000

125 fixed heavy duty plate 105X80 mm/60 4.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11   164   400
125 fixed WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11   170   700
150 fixed heavy duty plate 105X80 mm/60 4.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11   190   600
150 fixed WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11   197   800
160 fixed heavy duty plate 105X80 mm/60 4.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11   195   600
160 fixed WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11   202   800
200 fixed heavy duty plate 105X80 mm/60 4.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11   245   700
200 fixed WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11   245   1000

125 total brake heavy duty plate 105X80 mm/60 5.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 55 164 165 400
150 total brake heavy duty plate 105X80 mm/60 5.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 55 190 165 600
160 total brake heavy duty plate 105X80 mm/60 5.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 55 195 165 600
200 total brake heavy duty plate 105X80 mm/60 5.00/4.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 55 245 165 700

125 front brake WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 50 170 112.5 700
150 front brake WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 57 197 135 800
160 front brake WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 57 202 135 800
200 front brake WELDED heavy duty plate 105X80 mm/60 8.00/6.00 zinc blue PA heavy duty white Polyamide white - 40 to + 80°C double ball bearing 6204 without without EN standard 50 60 20 M 12 135x110 105x84/76 11 59 245 155 1000
