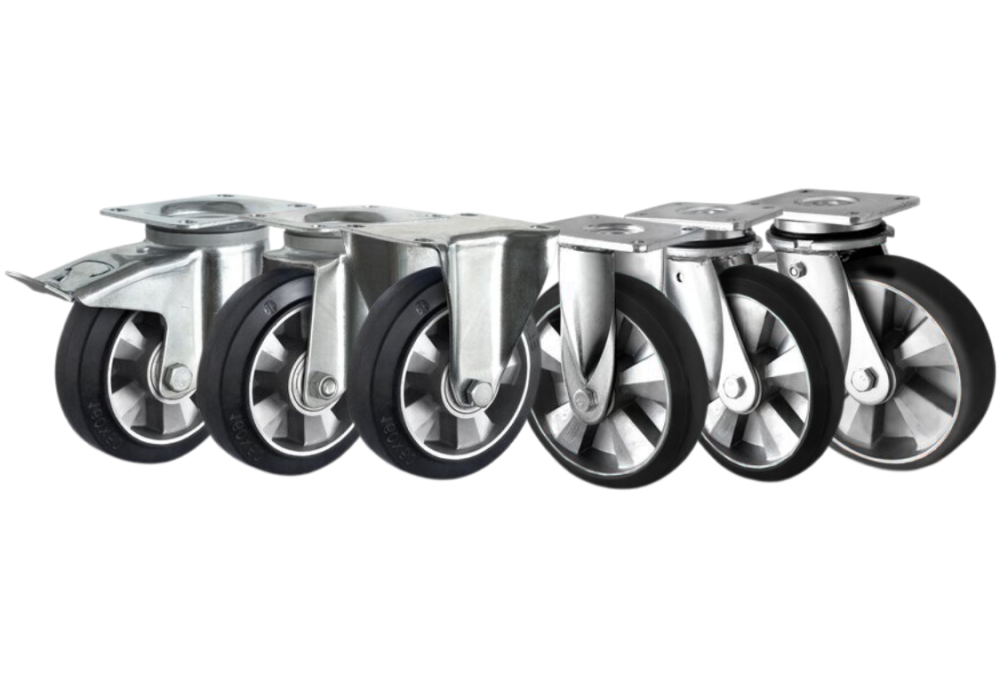

Black Rubber, Aluminum Centre Castor
Product Code
BLKRUBBERALUCASTOR
From
£15.44
£12.87
Please contact us on 01384 424232
to discuss discounts for large quantities of 10 or more
to discuss discounts for large quantities of 10 or more
The excellent elasticity guarantees an easy overcoming of obstacles, vibration damping and noise reduction during use. Combined with appropriate brackets, they are also suitable for mechanical handling up to 6 km/h. Examples of recommended applications: trolleys for indoor and outdoor industrial handling, manual pallet trucks, heavy waste collection bins.
wheel-Ø | fork type | castor type | mounting | mounting size | plate thickness / fork thickness |
housing surface | wheel center |
center color |
tread | shore A | tread color | temperature range |
bearing | threadguard | threadguard color |
Test/normal | width of Tread (mm) | width of hub (mm) | wheel center hole (mm) | screw size (mm) | size of plate (mm) | plate hole centres (mm) | plate hole (mm) | offset (mm) |
overal height (mm) | swivel radius (mm) | load capacity (kg) |
125 | swivel | heavy duty | plate | 105X80 mm/60 | 4.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 50 | 164 | 300 | |
125 | swivel WELDED | heavy duty | plate | 105X80 mm/60 | 8.00/6.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 50 | 170 | 300 | |
160 | swivel | heavy duty | plate | 105X80 mm/60 | 4.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 55 | 195 | 400 | |
160 | swivel WELDED | heavy duty | plate | 105X80 mm/60 | 8.00/6.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 57 | 202 | 400 | |
200 | swivel | heavy duty | plate | 105X80 mm/60 | 4.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 55 | 245 | 500 | |
200 | swivel WELDED | heavy duty | plate | 105X80 mm/60 | 8.00/6.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 59 | 245 | 500 | |
250 | swivel | heavy duty | plate | 105X80 mm/60 | 4.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 65 | 295 | 500 | |
125 | fixed | heavy duty | plate | 105X80 mm/60 | 3.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 164 | 300 | ||
125 | fixed WELDED | heavy duty | plate | 105X80 mm/60 | 8.00/6.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 170 | 300 | ||
160 | fixed | heavy duty | plate | 105X80 mm/60 | 3.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 195 | 400 | ||
160 | fixed WELDED | heavy duty | plate | 105X80 mm/60 | 8.00/6.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 202 | 400 | ||
200 | fixed | heavy duty | plate | 105X80 mm/60 | 3.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 245 | 500 | ||
200 | fixed WELDED | heavy duty | plate | 105X80 mm/60 | 8.00/6.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 245 | 500 | ||
250 | fixed | heavy duty | plate | 105X80 mm/60 | 3.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 295 | 500 | ||
125 | total brake | heavy duty | plate | 105X80 mm/60 | 4.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 55 | 164 | 155 | 300 |
160 | total brake | heavy duty | plate | 105X80 mm/60 | 4.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 55 | 195 | 165 | 400 |
200 | total brake | heavy duty | plate | 105X80 mm/60 | 4.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 55 | 245 | 165 | 500 |
250 | total brake | heavy duty | plate | 105X80 mm/60 | 4.00/3.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 65 | 295 | 180 | 500 |
125 | front brake WELDED | heavy duty | plate | 105X80 mm/60 | 8.00/6.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 50 | 170 | 117.5 | 300 |
160 | front brake WELDED | heavy duty | plate | 105X80 mm/60 | 8.00/6.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 57 | 202 | 135 | 400 |
200 | front brake WELDED | heavy duty | plate | 105X80 mm/60 | 8.00/6.00 | zinc blue | Aluminum | Alu | Elastic | 70-75 | black | - 20 to + 80°C | double ball bearing 6204 | without | without | EN standard | 50 | 60 | 20 | M 12 | 135x110 | 105x84/76 | 11 | 59 | 245 | 155 | 500 |
